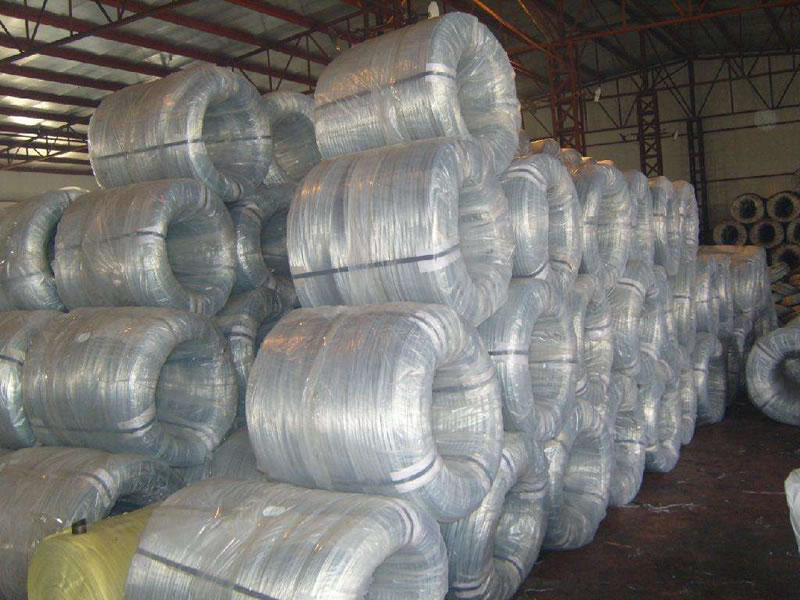

Electro Galvanized Steel Wire

Electro Galvanized Iron Wire

BWG 20#,18#, 16#, 14#, 12#.

Material grade: Q195
Quality : Soft and glossy
Tensile strength : 350 - 500 N/mm2
Zinc coating : Min 20 g/m2
Coil ID : 400-500mm
Packing : 500kgs coil roll.

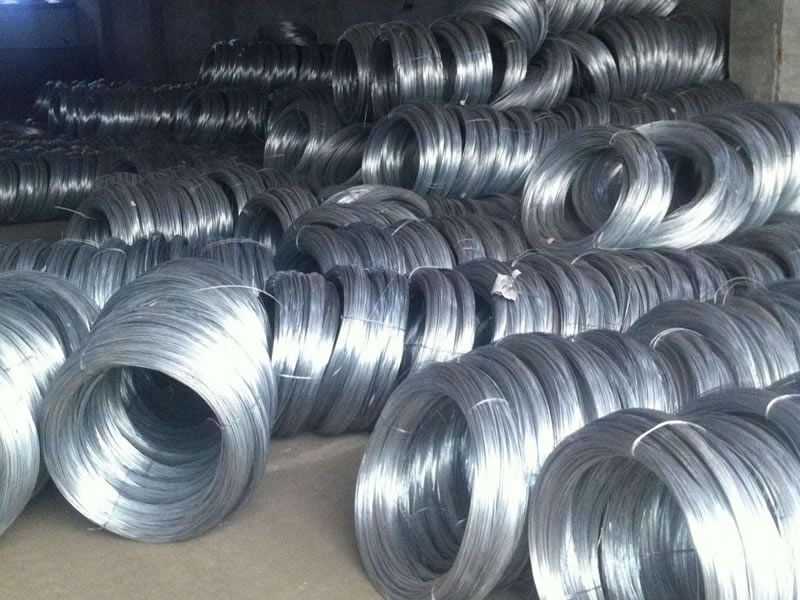

High Tensile Galvanized Iron Wire

For Afghanistan
For fencing wire
High tensile, 2.0 mm diameter galvanized iron wire.
Tensile Strength:  minimum of 1050 N/mm2
Galvanization: BS EN 10244 or equivalent
Elongation/Ductility: Suitable for the purpose of utilization.

Packing:
Each coil should be of 25kg
Coils should be packed in pallets for easy handling.

Low Tensile Galvanized Iron Wires

Low tensile (low carbon), 2.5 mm diameter galvanized iron wire.
Tensile Strength: minimum of 350-450 N/mm2
Galvanization: BS EN 10244 or equivalent
Elongation/Ductility: Suitable for the purpose of utilization.

Packing:
Each coil should be of 25kg
Coils should be packed in pallets for easy handling.

Electric Galvanized wire in Spool

For Jordan
Wire thickness 0.38 mm
Hard Plastic Spool Dia 2.5 Cm
Spool Length 16 CM
Each spooled wire weight: 7-8 KG.

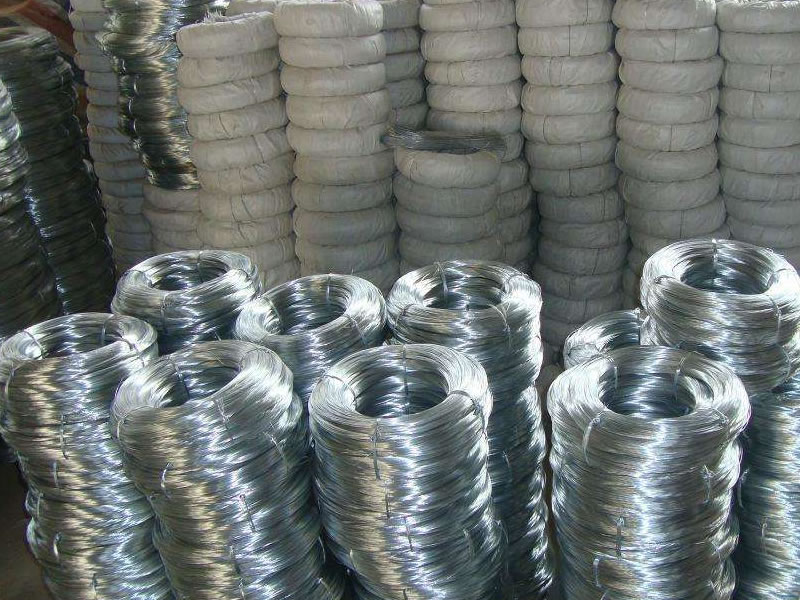

Soft Annealed Galvanized Steel Wire

Material: Galvanized mild steel wire
Grade : SAE 1010
Surface: Bright, soft annealed
Wire diamter: 2.3mm, 2.5mm, 2.8mm, 3.1mm

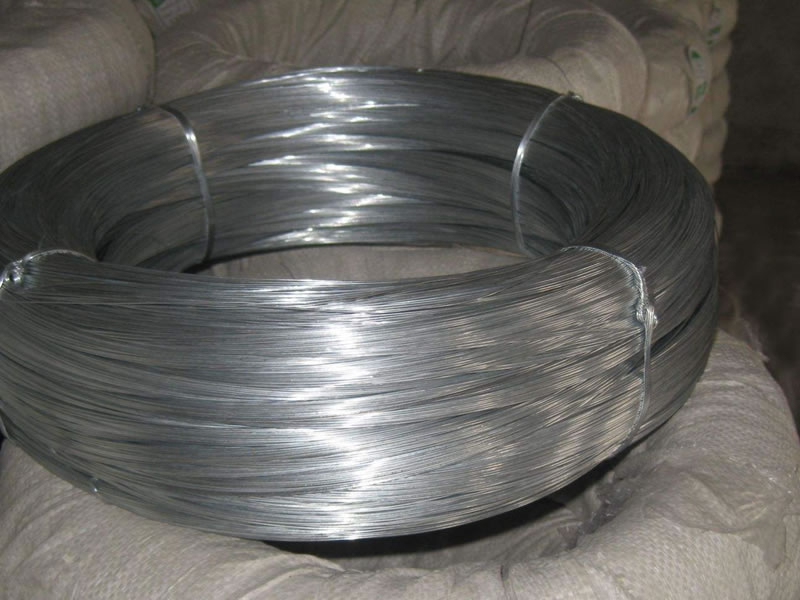

Galvanized Wire ( Round Wire )

For Spain.
Material: Material: Low carbon steel galvanized wire
Wire Diameter: Round 1.20 mm
Grade: ASTM A 641 M 03 CLASE 1 ZINC COVER MIN 55 GRS/M2
Packing: Sea packing. In coils of 200 kgs (+/- 5kgs), packed in bundles with 1000 kgs (5 coils).

Galvanized PVC Coated Wire

Material: Mild drawn or rolled
Inside: 1.60mm electro galvanized wire, outer diameter:2.60mm
Tensile strength: Min. 380MPa.
Elongation: Min. 9%

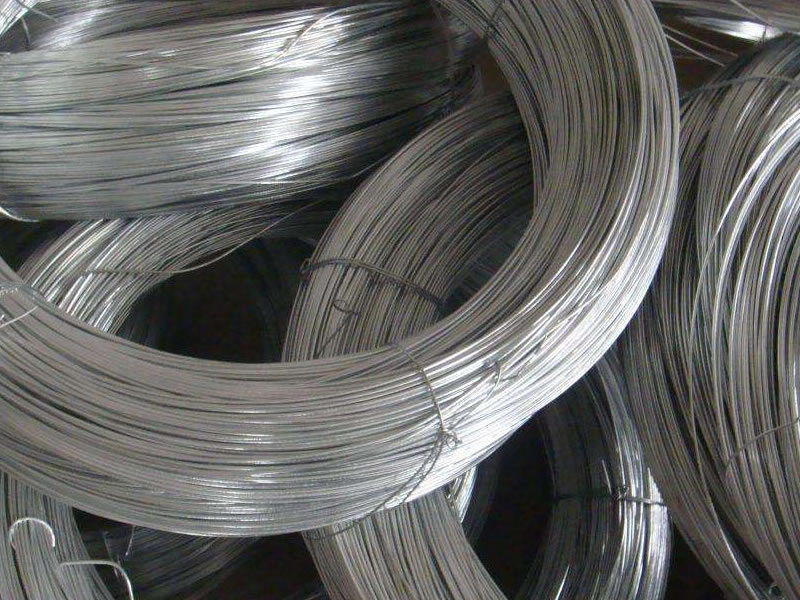

Galvanized Mild Steel Wire ( Binding Wire)

Galvanized wire:
Wire Diameter: 2mm Z27
Wire Diameter: 2.5mm Z27
Application: Grape and garden plant support.

Galvanized Wire Mesh ( Mesh Wire)

For Malaysia
For square mesh weaving.
Material: Wire thickness 0.65 mm, 22 G , 0.55 mm, 23G
Mesh: Square mesh (10 mesh per inch)

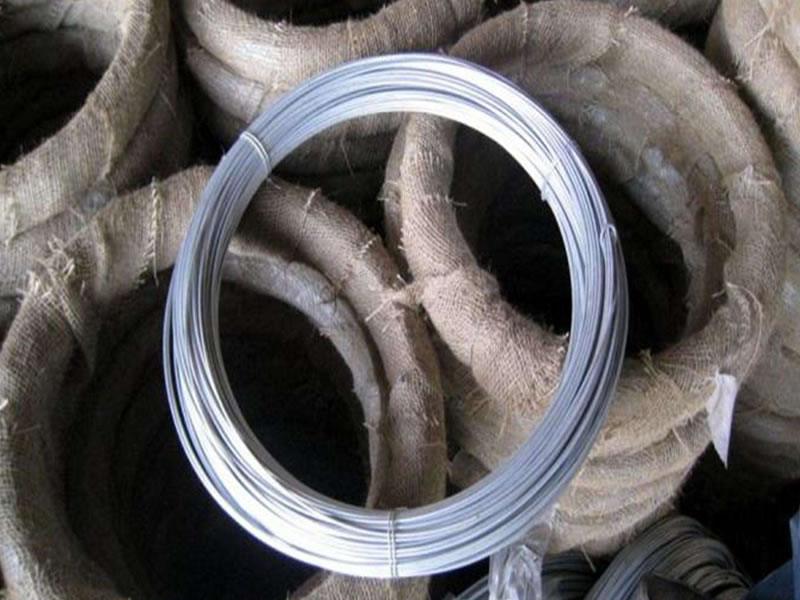

21 SWG Galvanized Binding Wire

21Gauge Galvanized Wire, for construction rebar tying
Packing with inside plastic paper and outside with hessian cloth.

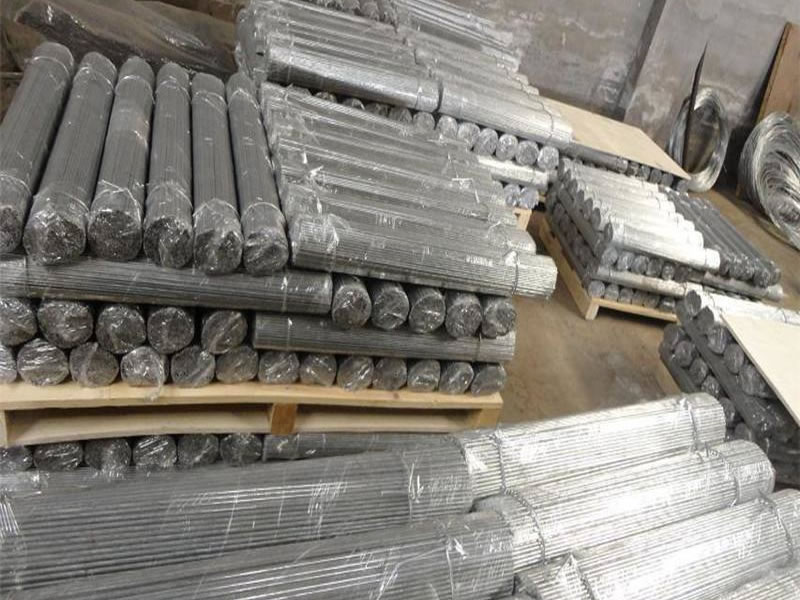

Electro Galv. Cut Wire

Galvanized steel wire 3.7mm in diameter
750mpa tensile strength
Zinc plating galv.: 20g/m2
Straighten and cut into 30 inches and 10 inches.

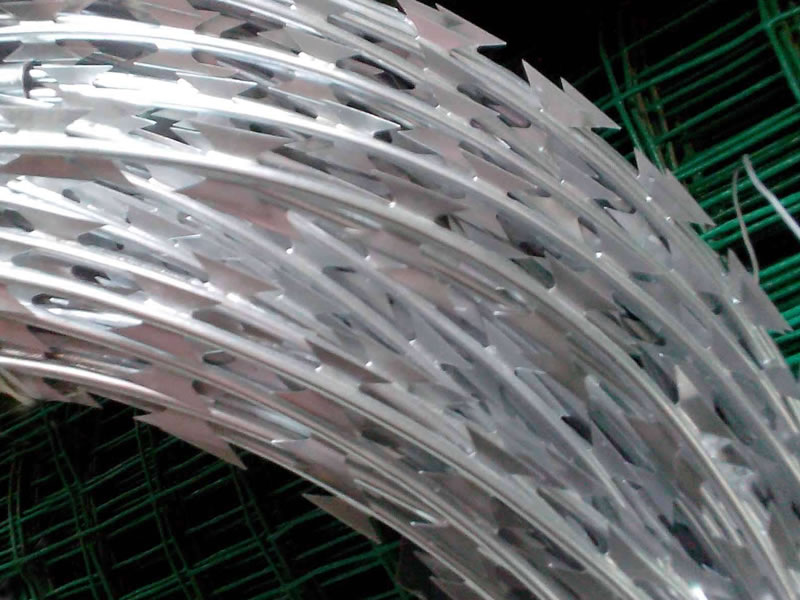

Galvanized Razor Barbed Wire

For East Africa
For security fencing purpose
Material: Galvanized Wire 12 gauge

Carbon Steel Wire Galvanized Welded Mesh Fences

Wire galvanized for welded wire fence
Wire material: Low carbon steel for general purpose GOST 3282-371
Galvanization layer: 80 g/sq.m.
Size: Wire diameter 3.0 mm, 4.0 mm, 5.0 mm

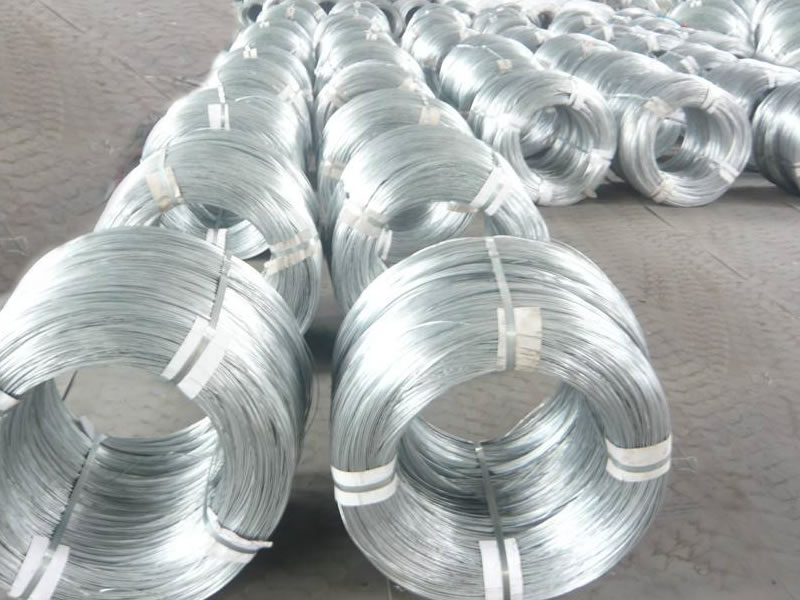

Soft Quality Electro Galvanized Wire ( Fencing Mesh Wire)

For Romania
For horizontal wire and vertical wire of field fencing mesh.
Material:  Soft Electro galvanized wire 2.0mm, in 100kg/coil
Soft Electro galvanized wire 2.5mm, in 100kg/coil

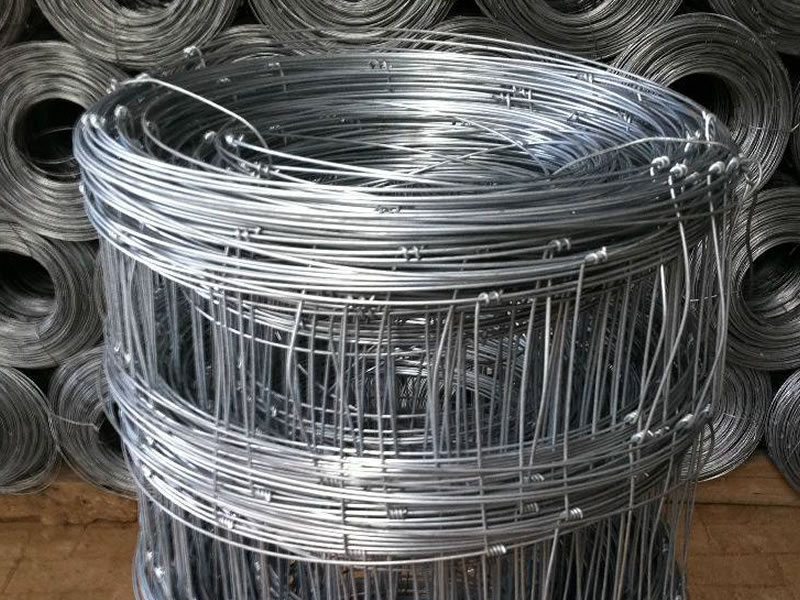

Galvanized Mesh Fence:

Field fence of galvanized wires, for cattle and horse farming
Mesh coil of 50m, Heigh of mesh fence 200cm
Number of horizontal wire 17, distance between vertical wire 15cm
Horizontal wire (galv. wire ) diameter min.2.50mm
Vertical wire (galv. wire) diameter min.2.00mm
Diameter of edge wire from top and bottom min.3.00mm.

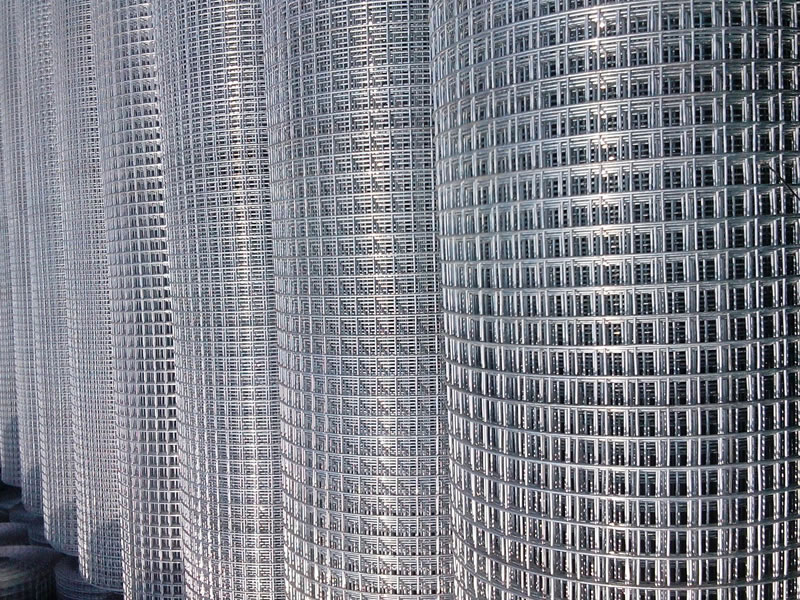

Electric Galvanized Welded Mesh

For USA
Hole size: 1/2"
Mesh: square
Wire: BWG 19
Roll size: 4' x 100'
Weight: 37 kg/roll

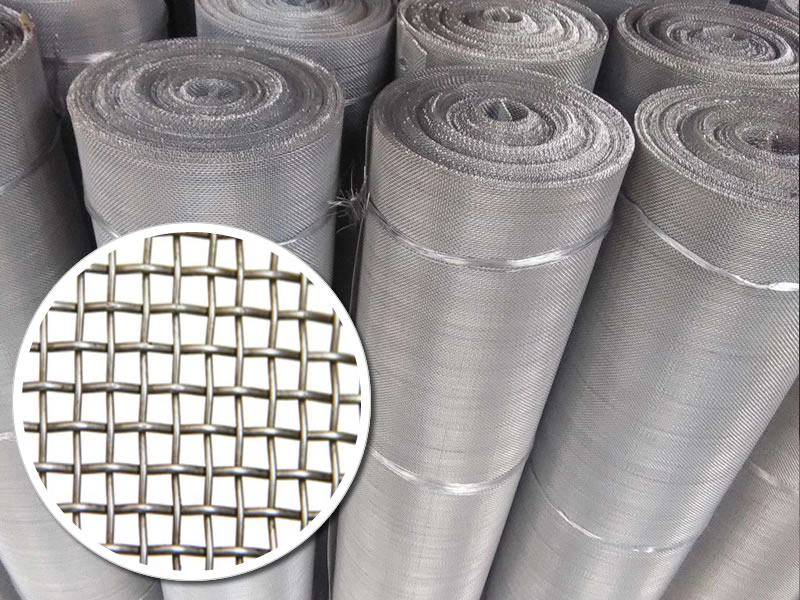

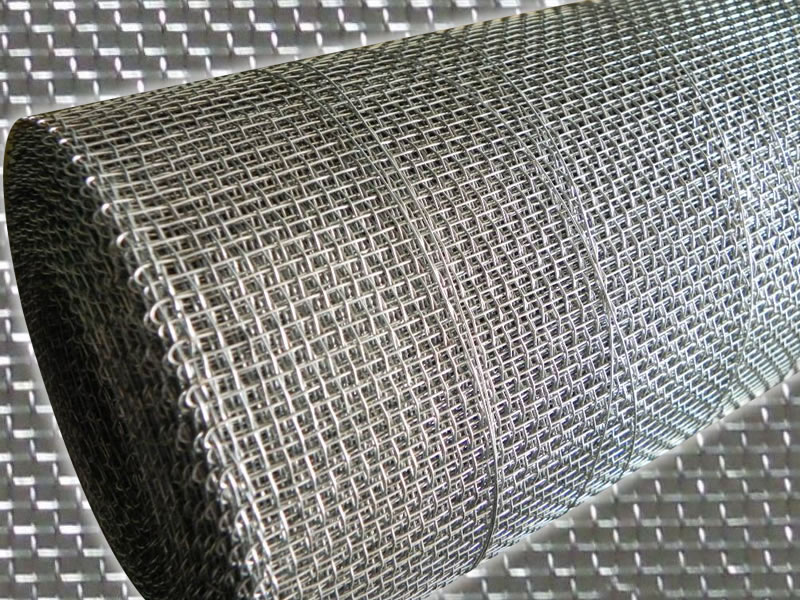

Woven Galvanized Wire

Galvanized before or after woven wire mesh.
Wire: 0.041 inch (19 gauge) wire
Mesh: 2 mesh, 1/2" opening, square hole mesh.
Mesh Rolls: 48 inch X 100 feet rolls.

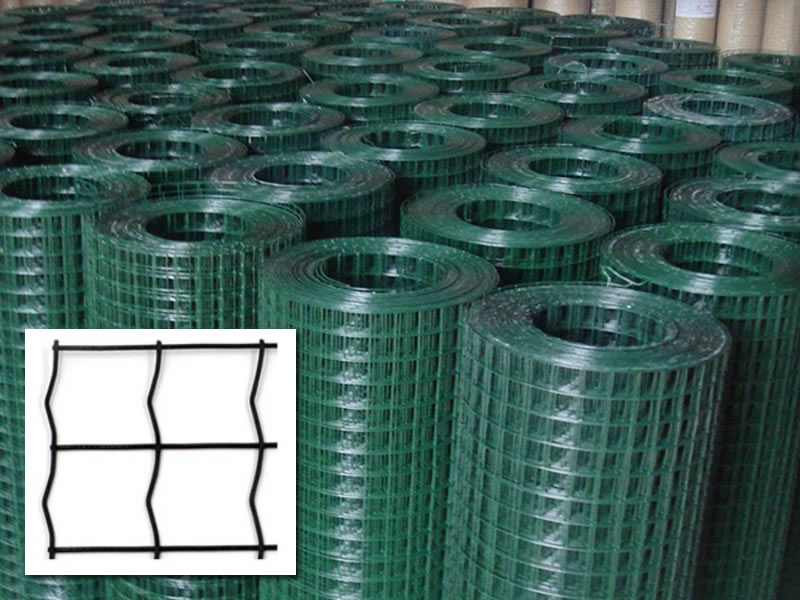

PVC Coated Galvanized Wire Mesh ( Garden Border Fencing)

Material: Wire mesh, PVC coated.
Mesh 60x60mm
Wire: Crimped wire, galvanised.
Diameter of wire inner 2.0mm, outer 3.0mm
Mesh rolls: 1.5m width, length 10m length.
Fence style: Euro
