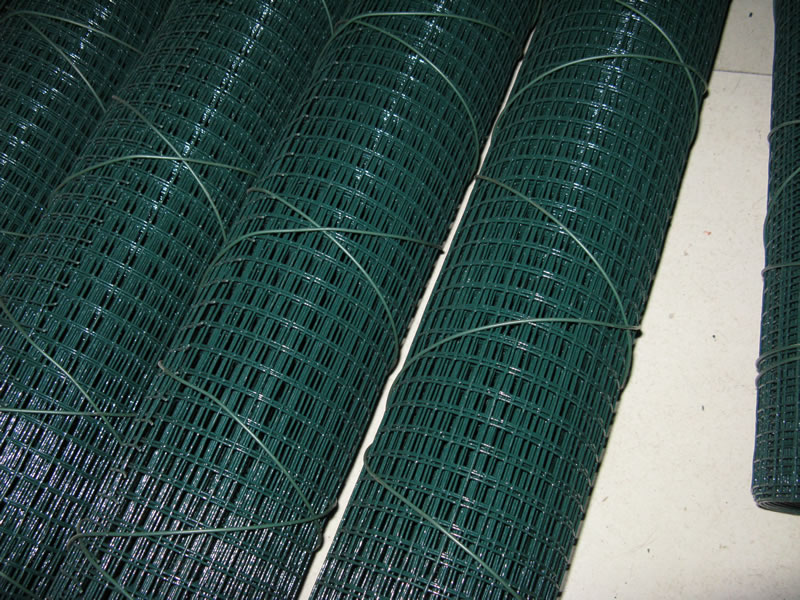

Vinyl Coated (PVC + UV Treated )Welded Steel Mesh Netting

Galv. Mesh Fence with Green Vinyl Coating UV ProtectionVC Painted Galvanised Welded Wire Netting, UV Protective Mesh Fence as Euro Garden Boarders Barriers

Vinyl Coated - VC - welded wire fencing and meshes are both long lasting and attractive. PVC Coated wire mesh is coated with a thick layer of PVC which is tightly bonded to the wire by a heat process. The coating is flexible and will not crack when the wire is bent. It is stable over a wide temperature range, maintaining its qualities in extremes of both hot and cold temperatures. UV inhibitors are in the vinyl to retard degradation from sunlight. The coating is also very resistant to scraping and abrasion.

Type : Roll or Panel

Surface Treatment:

  • Hot dipped galvanized after or before welding
  • Electro galvanized after or before welding
  • PVC coated welded wire mesh
  • PVC+UV coated welded wire mesh.

Classification:
4*4 green vinyl coated welded wire mesh for fencing;
Black vinyl coated welded mesh rolls;
50mm hole size vinyl coated welded gabion mesh;
Roll packing vinyl coated welded mesh to thailand;
Concrete reinforcement block truss type black vinyl pvc coated welded wire mesh;
Heavy gauge vinyl coated 1/4 inch welded wire mesh.

Common colors
Dark Green
Pure White
Stone Grey

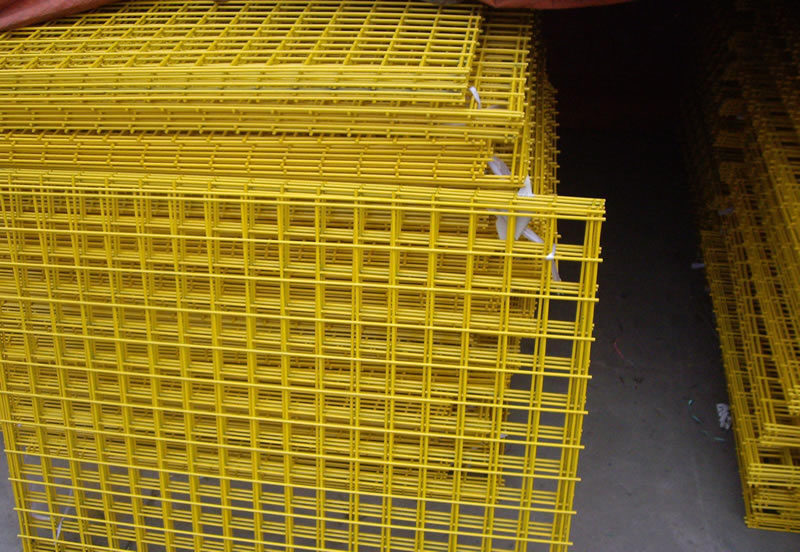

Welded Mesh Temporary Fence PanelsYellow PVC Painted Mesh Panels Used as Temporary Fence for Control of Urgent Events and Crowd
Yellow
Black
Anthracite Grey
Other RAL colors are available

Advantage:

  • Easy to work with - easily shaped and bent
  • Attractive - unobtrusive pvc coating blends with background
  • Longer lasting - superior double protection with both vinyl and galvanizing

Application :
Garden fence and trellis;
Euro Fence;
Boarder fence;
Residential fence;
Railway, airport fence and other barrier;
Temporary fence;
Poultry case, egg basket, passageway fence railing, lobby, guardrail, mechanical shield, livestock and plants guardrail, agriculture, transportation and mining industry, etc.

Service Life : 5-10 years

Specifications:

Mesh Wire Diameter Width Length
1/4" X 1/4" 22#, 23#, 24# 18", 24", 30", 36", 48", 60''，72'' 50', 100', 150'
3/8" X 3/8" 19#, 20#, 21#, 22#
1/2" X 1/2" 16#, 17#, 18#, 19#, 20#, 21#, 22#, 23#
5/8" X 5/8" 18#, 19#, 20#, 21#
3/4" X 3/4" 16#, 17#, 18#, 19#, 20#, 21#
1" X 1/2" 16#, 17#, 18#, 19#, 20#
1" X 1" 14#, 15#, 16#, 17#, 18#, 19#, 20#, 21#
11/2" X 11/2" 14#, 15#, 16#, 17#, 18#, 19#
1" X 2" 14#, 15#, 16#
2" X 2" 12#, 13#, 14#, 15#, 16#
2'' X 4'' 12#, 13#, 14#, 15#, 16#
