Galvanized Steel Wire Fence Panels
Roll Top Hot Dipped Gal. Wire Mesh Fence
We supply welded wire fence, welded wire frame fence, double wire fence, 358 mesh fence, hot dipped galvanized temporary fence panels and 3D welded wire fence.
Galvanised Welded Wire Fence is widely used for garden, backyard, playground, airport, road, railway, farm land and prison security applications.
Galvanised Welded Wire Fence Process: Material--straighten and cutting---welded---making folds---galvanized/hot-dipped---PVC coated--packing.
Welded wire frame fence intersections are welded immobility, hight strength, the appearance is luster, good resistance of corrosion, well-proportioned mesh, the mesh doesn't come loose , the nets is flatten .
3D Welded Wire Fence now often used as a cost effective boundary fence in schools and colleges. Normally the panels have a 200x50mm mesh. Usual colours are green or black, but other colours can be supplied.

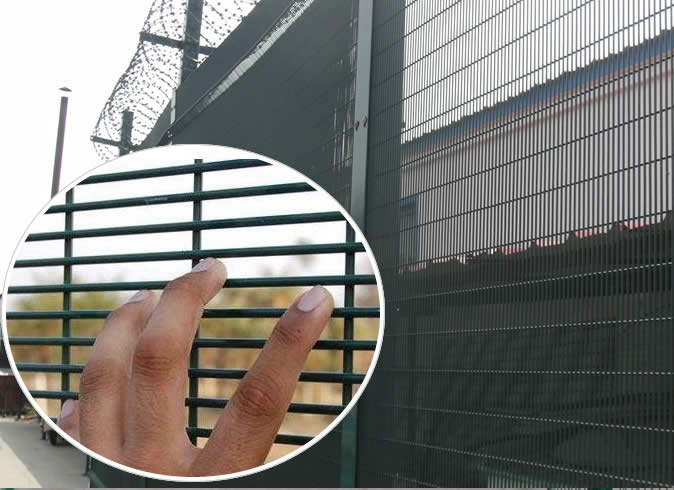

358 Welded Wire Mesh Panel is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on. PVC Coated Welded Wire Mesh Fence are very affordable.
Classification:
Playground galvanized welded wire mesh fence panels in 12 gauge
2x2 welded wire mesh fence panels in 6 gauge

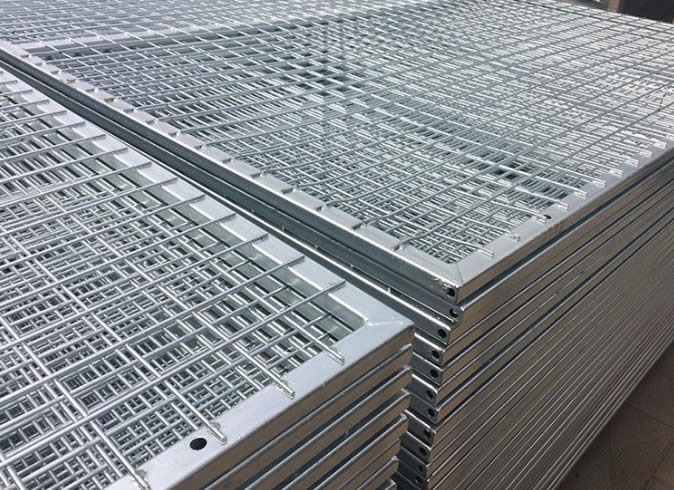

2.4x2.1m powder coated galvanized steel welded wire temporary fence panel
10x10 reinforcing welded fence panels
358 reinforcing fence panels for security
Heavy gauge galvanized 2x4 welded panel
4mm welded mesh galvanized
Galvanised Welded STEEL MESH Fence Products
Framed Gal. Mesh Fence can be used for residence, workshops, factory and school perimeters.
Roll Top Galvanised Wire Fence Used for Perimeter Fencing

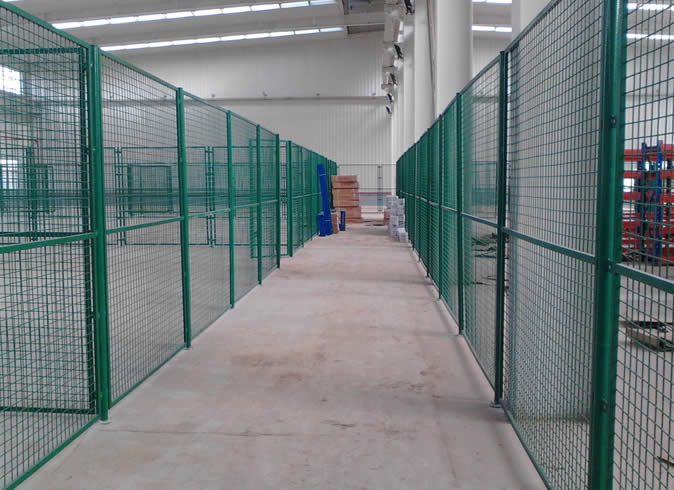

Welded Wire for Workshop Partitions

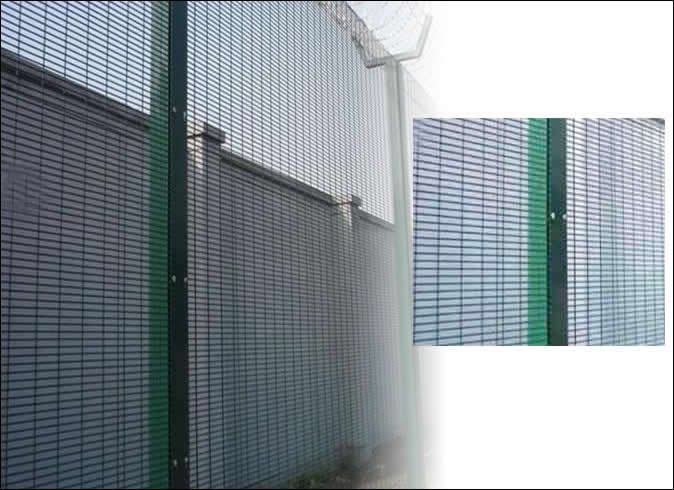

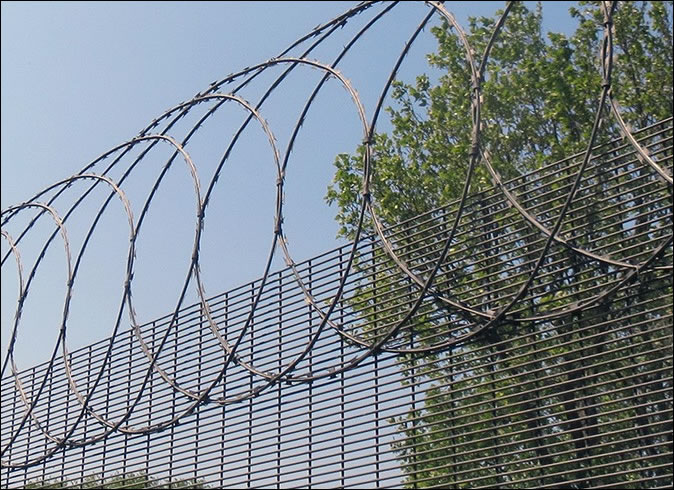

Hot Dipped Galvanised 358 Mesh, Anti Climb, Anti Cut Security Barrier for Prison and Other Sites.
Welded Wire Fence Panels Specification:
| Mesh | Wire diameter | Surface Treatment | Panel Width | Folds NOS. | Height | Post height |
| 50x200mm, 50x150mm, 50x100mm, 55x200mm | 3.0mm,4.0mm, 4.5mm, 5.0mm | Galvanized and Electrostatic polyester coated or PVC dip coated | 2.50m | 2 | 630mm | 1200mm |
| 2 | 830mm | 1400mm | ||||
| 2 | 1030mm | 1500mm | ||||
| 2 | 1230mm | 1800mm | ||||
| 2 | 1430mm | 2000mm | ||||
| 2 | 1630mm | 2200mm |
| Mesh | Wire diameter | Surface Treatment | Panel Width | Folds NOS. | Height | Post height |
| 50x200mm, 50x150mm 50x100mm 55x200mm | 3.0mm,4.0mm 4.5mm,5.0mm | Galvanized and Electrostaticpolyester coated or PVC coated | 2.50m | 4 | 1400mm | 2000mm |
| 4 | 1600mm | 2200mm | ||||
| 4 | 1800mm | 2400mm | ||||
| 4 | 2000mm | 2600mm | ||||
| 4 | 2200mm | 2800mm | ||||
| 4 | 2400mm | 3000mm |

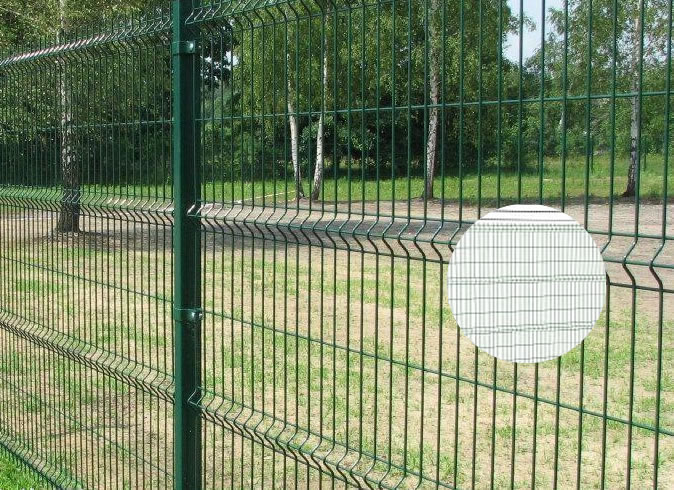

GALVANIZED WELDED PANEL FENCE SYSTEM, COMPLETE WITH 3D PANEL, POSTS AND INSTALLATION ACCESSORIES
PVC Welded Mesh Panel, 3D Panel Type
Panel Height: 2.23 ±0.03m
Mesh Size of Panel: 55 x 200±5mm
Wire diameter of Panel: φ 5.00 ±0.25mm.
Panel Width : 2.50 m
Bend of Panel: 4 units.
Coating: Hot dip Galvanized and NAXO Coating +PVC Coated
Color: Ral 6005 Dark Green

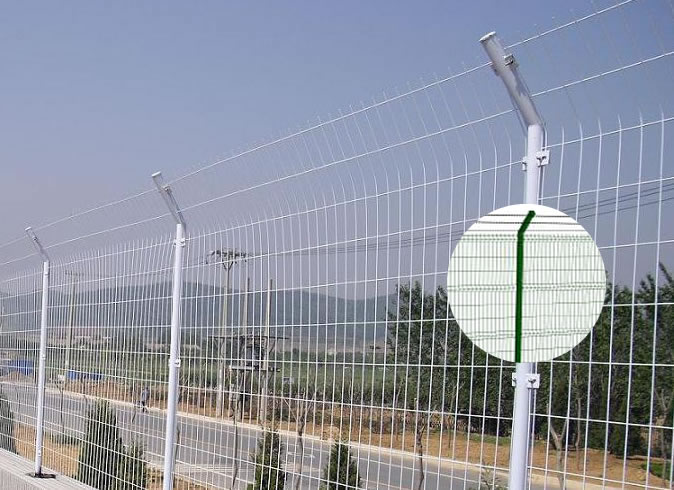

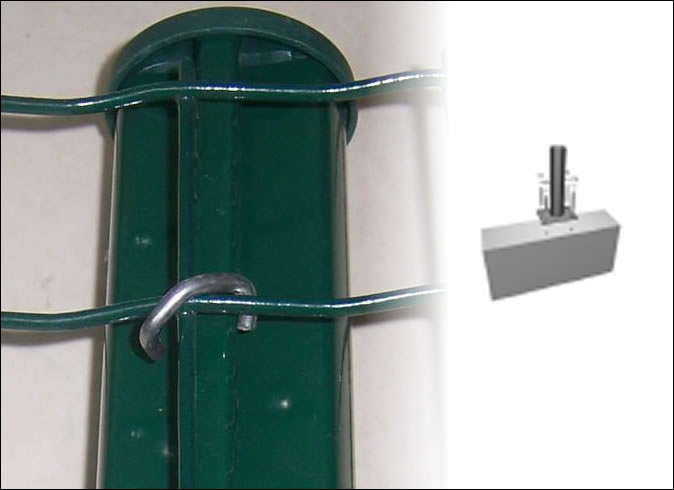

Fence Posts
Post: 60x60 mm SHS Profile
Wall thickness of post: 1.50 mm
Post Height: 227m.
Coating:
Hot dip galvanized and NAXO coating + PVC Coated
Color: Ral 6005

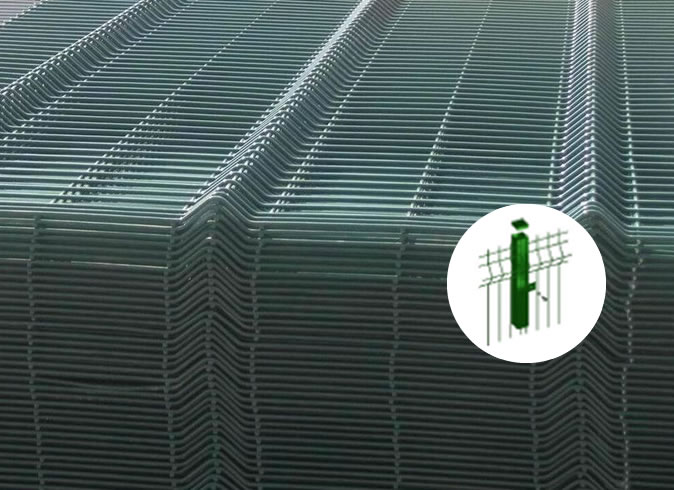

Accessories
150x150s5nlm baseplate and anchorbolts
Plastic cap
Metal clips & bolts: 4 pieces per post.
Fence Top
L extension arms support

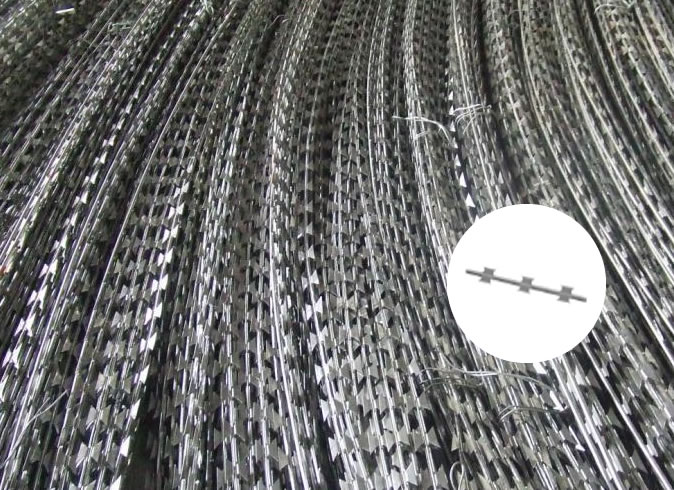

4 rows Sraight razor wire on welded panel system
Razor wire blade: BTO 9
Coating: Hot dip galvanized
PVC WELDED MESH FENCE SYSTEM, WITH 3 ROWS ANTI CLIMBING RAZOR WIRE

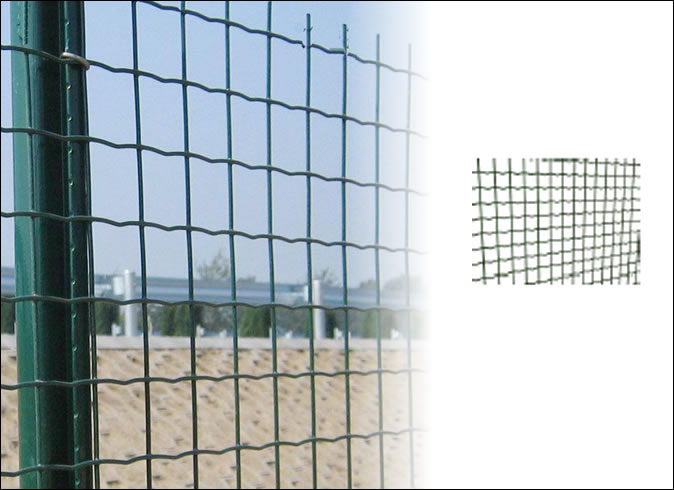

Welded Wire Curved
Mesh Fence
Wire Thickness: 2.80 mm (±0.20mm)
Wire form: Crimped
Mesh Sizes: 50 x 50 mm
Fabric surface: Ripple wave
Roll Length -25 m
Heights of Roll - 2.00 m
Coating:
Hot Dip Galvanized and PVC Coated
Fence Posts (Terminal Posts, Corner Posts, Line Posts) with accessories
Pipe Profile - φ 60 mm.
Profile Thickness -1.50 mm
Post Length 2.00 m. with 150sl 50x5mm Flange, with Plastic Hat
Coating: Hot dip galvanized and NANO COATING + Electrostatic Polyester Coating
Color: Ral 6005
Razor Wire Fence Top
L extension arms support
3 rows Sraight razor wire on welded mesh fence system
Razor wire blade: BTO 9
Coating: Hot dip galvanized
Coating: Hot dip galvanized

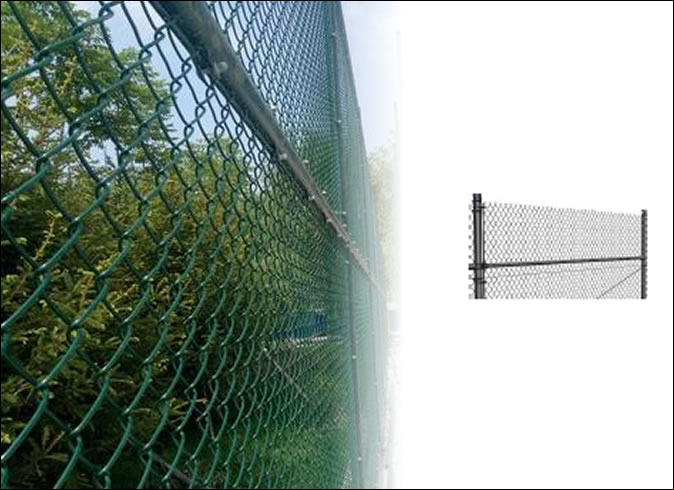

Middle Brace Rails
Pipe Pronle-042 mm
Profile Thickness - 2.W mm
2 nos at corners & 1 nos at the end
2 nos At even- 45m
Carriage Bobs. Rail End & Brace Band
Coating:
Hot dip galvanized and NANO COATING + Electrostatic Polyester Coating
Color: Ral 6005

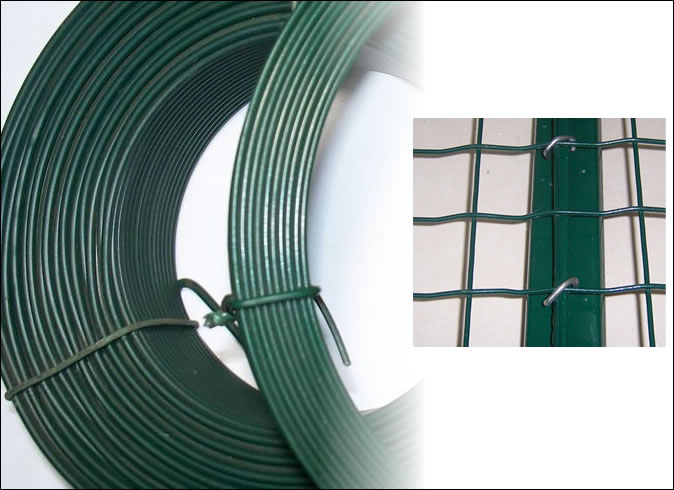

Tie Wire
Wire Thickness - φ 3.00mm (±0.15mm).
Hot Dip Galvanized and PVC Coated
Color: Ral 6005
Application: Fence installation accessories for tying and securing

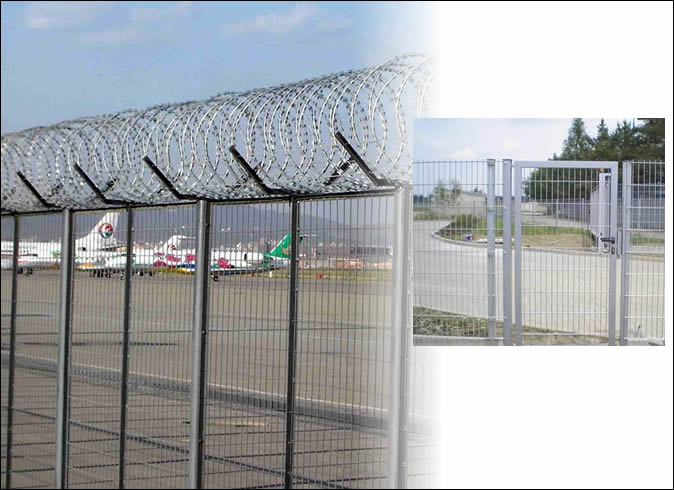

HOT-DIPPED GALVANIZED MESH FENCE AND GATE, Suitable for power plant and airport security
Hot Dipped Galvanized Mesh Fence
Perimeter Fencing for Power Plants:
Panel height: Min. 3 m ( Y crest post not included).
Y arm angled at 45 degrees
Coating: Hot Dipped Galvanized Steel
Fencing wire: 3mm in diameter.
Mesh: 50mm x 100mm
Welded Mesh Fence Panel with Y-Crest Post
Y Post: 0.5m (H) 45 degree with 4 strands of straight barbed wire
Fence Pole, one pc per 3m width panel
Fence Post, 3800mm(H)x 100x100 mm, thickness 3.0mm
Installation of Security barbed wire fencing top:
The y arm post fitted with 4 strands of straight barbed wire
A vertical security band across the barbed wire to prevent flexing.
Min. 2 vertical security band for every fencing panel.
Hot Dipped Galvanized Mesh Fence Gates
Pedestrian and Emergency Gates:
Double Gates 8.6m Length (4.3m per gate) x 3.8m (H) for Main Entrance
1.4m length single swing gate
Double Gates 8.6m Length (4.3m per gate) x 3.8m (H) for Heavy Vehicle Entrance
Sliding Service Gate (4.0m Length) x 3.8m (H).
Single Swing Emergency gates 1.5m Length x 3.8m (H)
Mesh panels for security gates:
Hot dipped galvanized steel mesh
Zinc plating: heavy corrosion resistance
Frame: Steel tube heavily galv.
Gates with anti-climb Y- Crest and concertina barbed wire coils
Installation of Security barbed wire fencing top:
The y arm post fitted with 4 strands of straight barbed wire
A vertical security band across the barbed wire to prevent flexing.
Min. 2 vertical security band for every fencing panel.

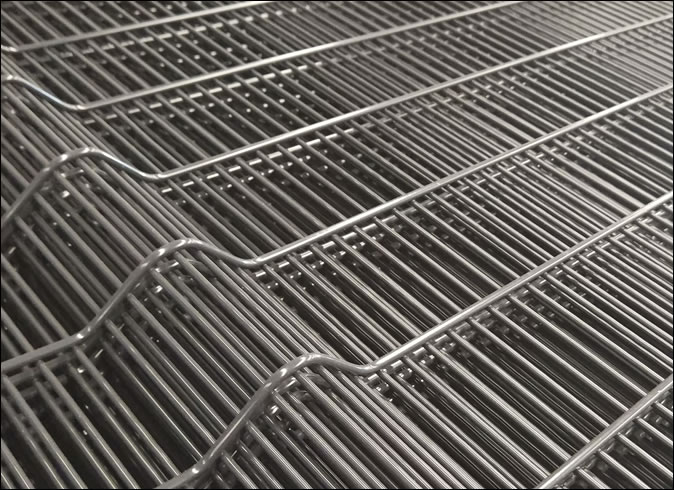

Galvanised Mesh Security Fence
Galvanised Mesh Security Fence, Euro Standard
Mesh fence panels:
358, 858 and 656 mesh panels, in 3m width and other sizes
Zinc coated hot dipped galv. after welded, powder coated, zinc aluminum galfan coated finishes available
656 and 858 wire fencing panels, supplied to customer specifications
Welded fence panels made of steel wire according to BS EN 10218-2:2012 T1 standard

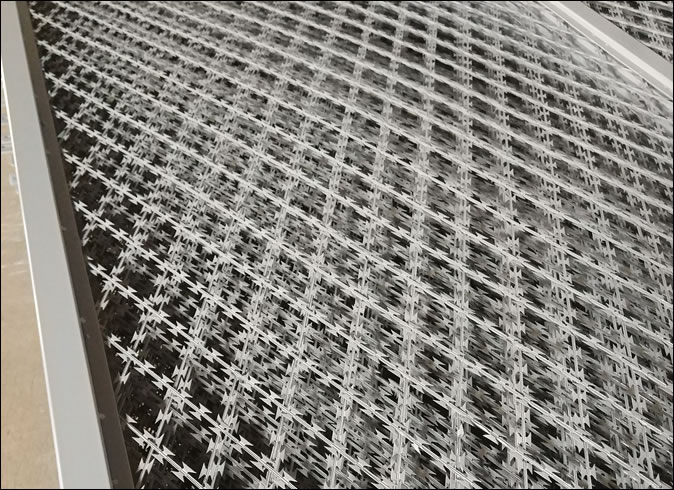

Razor Weld Wire Mesh Fencing, Hot Dipped Galv.

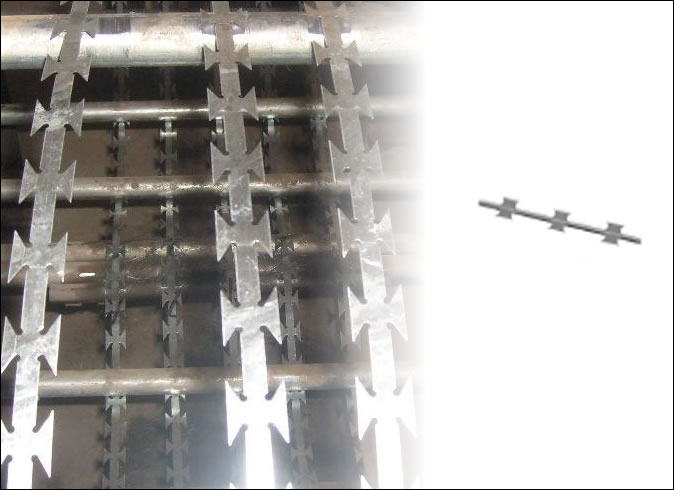

Razor weld mesh panel, made of BTO 22 blade barbed tape welding into flat grid
Hole type: Diamond mesh fence
Mesh:150x75 mm
Finish: Hot dipped galvanized with a zinc coating of 275gsm (min.)

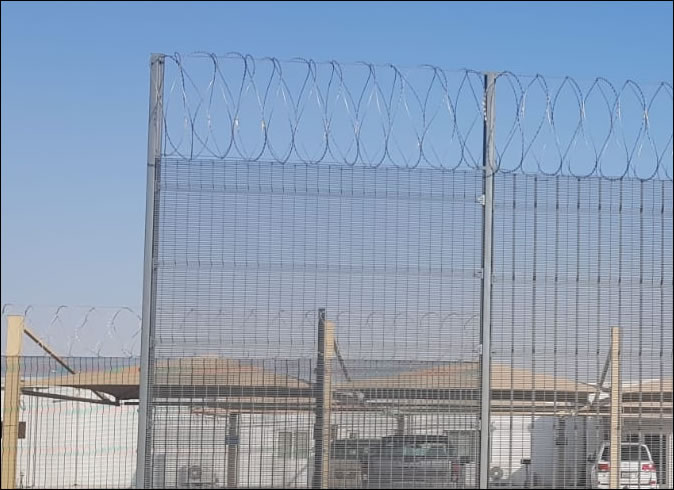

Welded Galvanized Steel Wire Fence Panels - Gas Plant Fence
Gas Plant High Security Fence – Internal Facilities Security Fence
Galvanized Wire Mesh and Fence Posts
Fence panel materials, complete with wire mesh, posts (including extended posts 6m high, for installation of CCTV Cameras at intervals of 100 m and all accessories necessary for installation
Fence panel details, posts details, topping details, main gates (8 m double leaf swing and 6 m double leaf swing) and pedestrian gates (1.2 m width), all supplied with clear dimensions and installation accessories. Supplied with details of the fence materials and their performance in adding security performance.
FENCE MATERIAL:
1. Fence panel: Welded galvanized 4mm diameter steel wire mesh, wire mesh reinforced, 4m height (inclusive of topping coil diameter which should not be more than 700mm diameter) above top of foundation, 76mm x 12.5mm aperture
2. Fence Posts: Fabricated steel posts showing clear sectional dimensions, braced or tapper locking, height of 4m above top foundation level with concrete foundation of sectional dimensions 400mm x 400mm x 700mm depth
3. Topping Coil: Galvanized steel barbed (blade profile) wire, high density per meter run, with fixing mechanism on steel angles/brakets, posts & fence panels
All topping coil materials complete with all accessories necessary for installation
External Weld Mesh Security Fence ( Panel 3.5m High 3mm x 76mm x 12.5mm )
Delivery and installation of high security wire mesh fence (external)
Fence panel materials, complete with wire mesh, posts (including extended posts 6m high, for installation of CCTV Cameras at intervals of 50-100 m) and all accessories necessary for installation
Fence supplied with fence panel details, posts details, topping details, main gates (8 m double leaf swing and 6 m double leaf swing) and pedestrian gates (1.2 m width), all with clear dimensions and installation accessories.
FENCE MATERIAL:
1. Fence panel: Welded galvanised 3mm diameter steel wire mesh, wire mesh reinforced, 3.5m height (inclusive of topping coil diamter which should not be more than 700 mm diamter) above top of foundation, 76mm x 12.5mm aperture
2. Fence Posts: Fabricated steel posts showing clear sectional dimensions, braced or tapper locking, height of 3.5m above top foundation level
3. Topping Coil: Galvanised steel barbed (blade profile) wire, high density per meter run, with fixing mechanism on steel angles/brakets, posts & fence panels
4. All topping coil materials complete with all accessories necessary for installation
