Hot Dipped Galvanized Razor Wire Coils Single or Concertina

Galvanized Razor Wire Fences:
Packaging for our razor wire:
- Carton.
- Water proof paper + woven bag.
- Other package can according to buyer's requirements.

Razor wire is made with galvanized sheet or stainless steel sheet perforated in sharpe blade and high tension galvanized steel wire or stainless steel wire as core wire. With the unique shape, razor wire gives excellent protection. Razor Wire is a modern type of protective and security products usually used on the top of Y shape posts and fences to protect fields, highways, railways, sports, grounds, and militay border, prison walls, high grade residential area, warehouse, prisons, military area and other important sites.

Features of Razor Wire
1. High protection, it is almost impossible to climb.
2. High-strength steel core very difficult to cut off.
3. Powerful security fence barriers neat appearance.
4. Extremely simple to install, needs three to four to install molding.
5. Anti-corrosion, aging, sunscreen, weather.

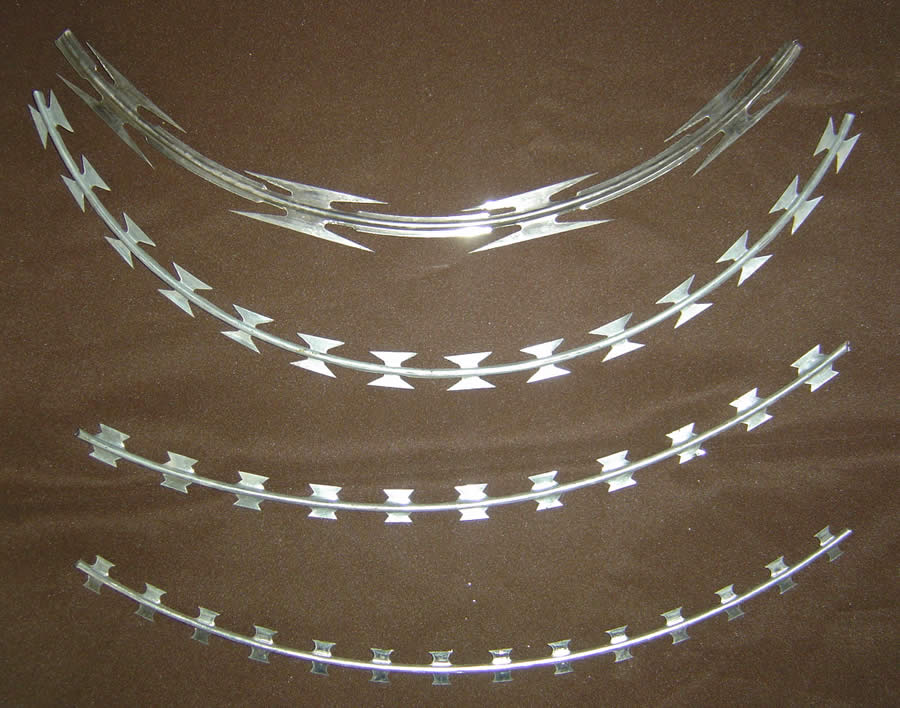

We supply razor wire below:
- Concertina razor barbed wire(cross,single)
- Flat wrap razor wire
- Welded razor wire

Hot sale razor blade fencing wire

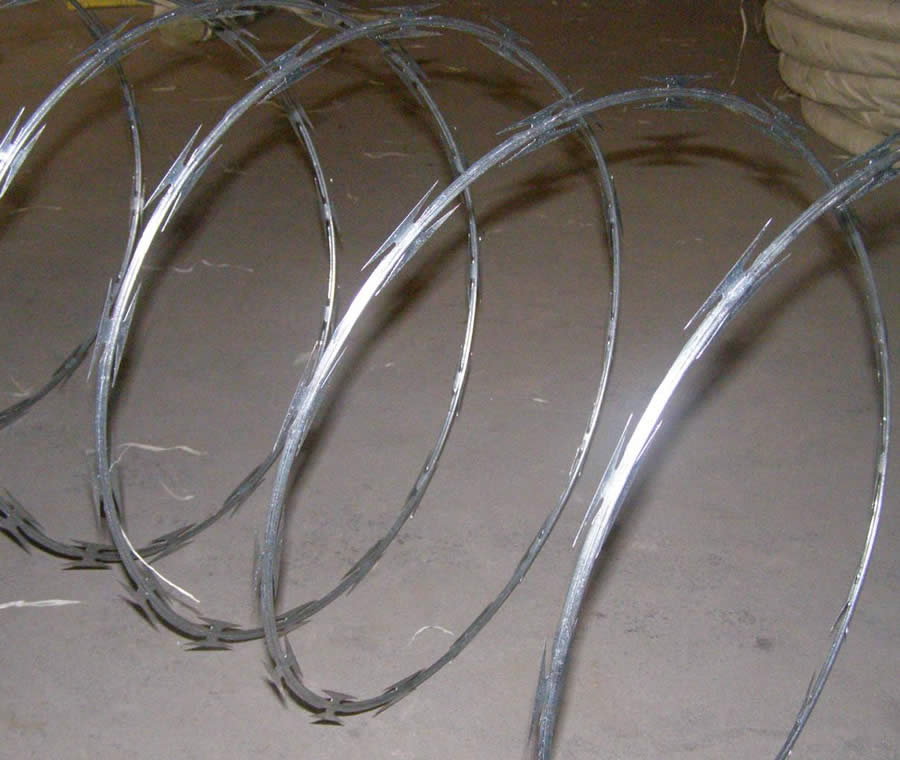

Concertina razor barbed wire(single)

Single loop razor barbed wire is also called single coil razor barbed wire, no clips, installed as per its natural form when they are expanding.
CBT-60 and CBT-65 are normally used in production of single loop razor barbed wire.

Concertina razor barbed wire(cross)

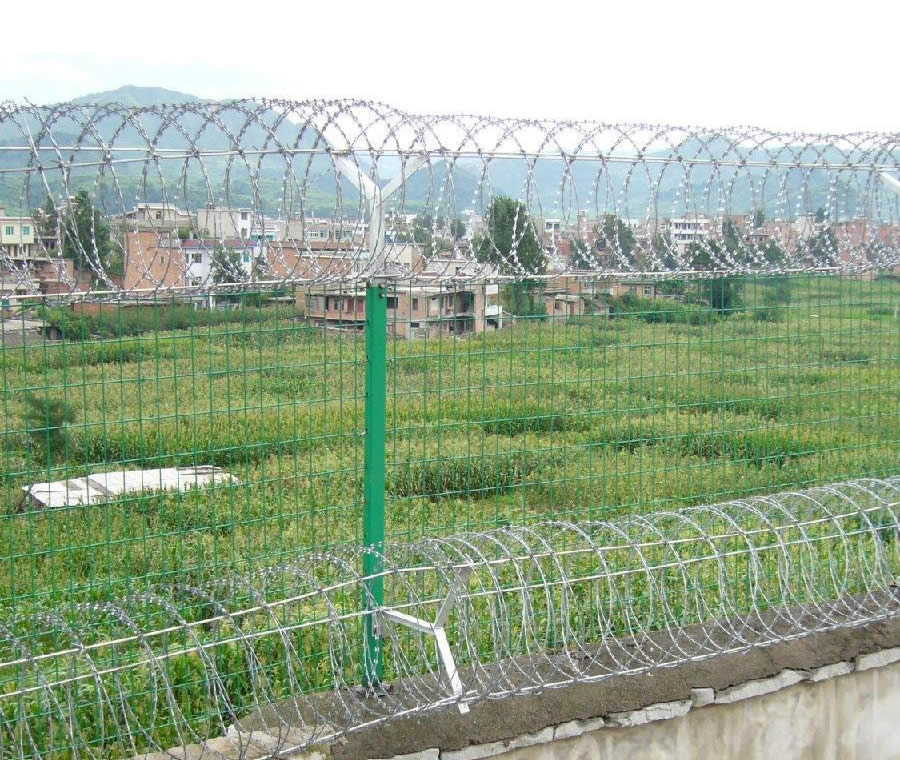

Coils Razor Wire on Top of Welded Mesh Fence

Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

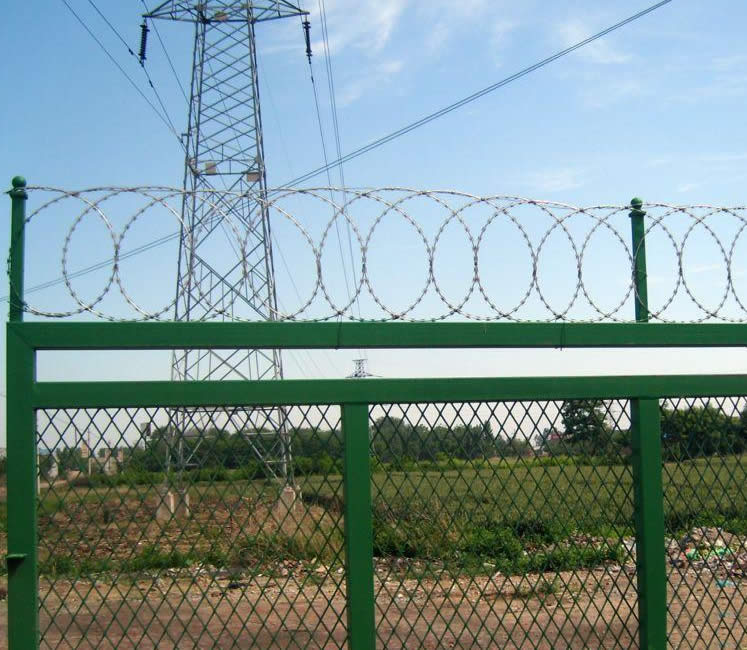

Flat wrap razor wire

Flat Razor Wire Fencing Panels

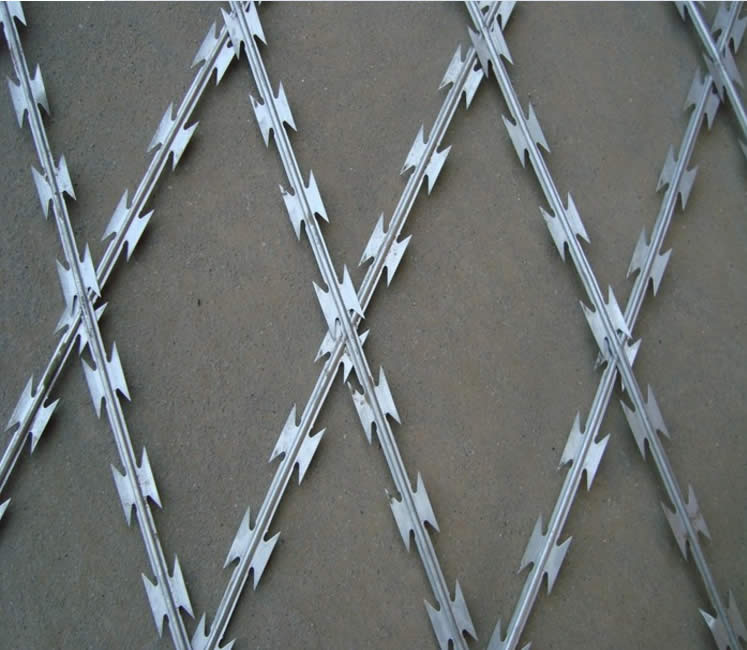

Welded Razor Wire Mesh Panels

BTO-28 Welded Razor Wire

RAZOR WIRE FENCE FOR WELDED MESH FENCING PANELS

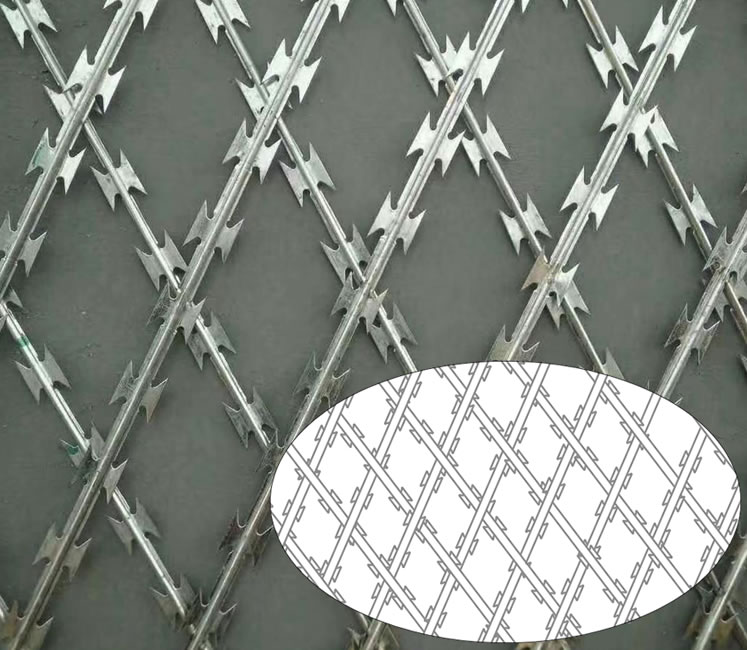

Anti Climbing Razor Mesh Sheet

Anti climbing galvanized steel razor wire mesh sheet

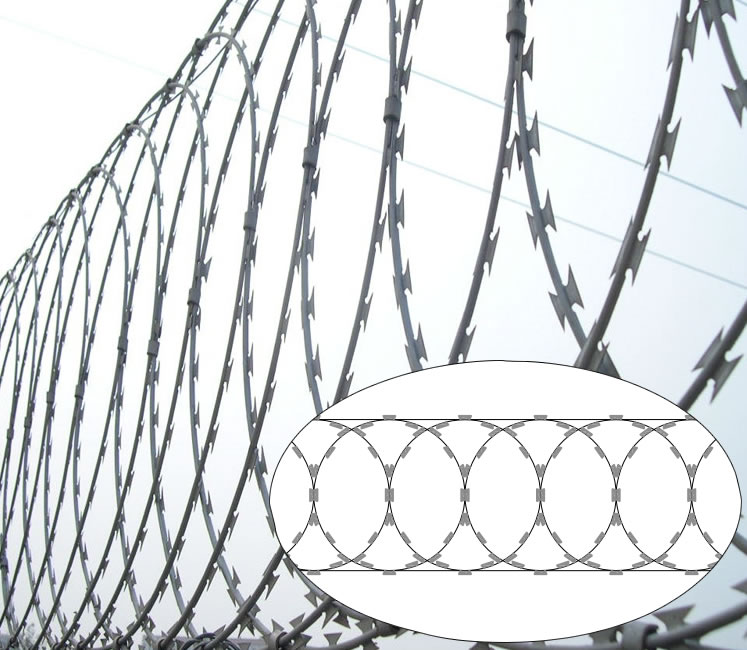

Flat Wrap Galvanized Concertina Razor Wire

Hot dipped galvanized flat type razor wire coils in 500mm loops

Galvanized steel razor wire fence is popularly used with Welded Mesh Panels for a complete security fencing system.
Razor wire types for anti climbing fencing tops:
Razor flat wire
HDG razor barbed wire coils
Stainless steel razor wire ribbons

Installation references:
1, Flat type razor wire fixing and securing with galvanized pull wire
2, Fixing and bracing of Galvanized welded razor wire mesh
3, Section Illustration

Main Specification:

Reference Number Blade Style Thickness Wire Dia Barb
Length
Barb
Width
Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 0 2.5±0.1 65±2 21±1 100±2

Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.

Barbed Tape Wire Specification
Outside Diameter No. of Loops Standard Length per Coil Type Notes
450 mm 33 7 - 8 M CBT-60. 65 Single coil
500 mm 56 12 - 13 M CBT-60. 65 Single coil
700 mm 56 13 - 14 M CBT-60. 65 Single coil
960 mm 56 14 - 15 M CBT-60. 65 Single coil
450 mm 56 8-9 M (3 CLIPS) BTO-10. 12. 18. 22. 28. 30 Cross type
500 mm 56 9-10 M (3 CLIPS) BTO-10. 12. 18. 22. 28. 30 Cross type
600 mm 56 10-11 M (3 CLIPS) BTO-10. 12. 18. 22. 28. 30 Cross type
600 mm 56 8-10 M (5 CLIPS) BTO-10. 12. 18. 22. 28. 30 Cross type
700 mm 56 10-12 M (5 CLIPS) BTO-10. 12. 18. 22. 28. 30 Cross type
800 mm 56 11-13 M (5 CLIPS) BTO-10. 12. 18. 22. 28. 30 Cross type
900 mm 56 12-14 M (5 CLIPS) BTO-10. 12. 18. 22. 28. 30 Cross type
960 mm 56 13-15 M (5 CLIPS) BTO-10. 12. 18. 22. 28. 30 Cross type
980 mm 56 14-16 M (5 CLIPS) BTO-10. 12. 18. 22. 28. 30 Cross type

Notes: Standard products are shown in the tables above, special specifications available on request. Standard materials are either galvanized or stainless steel.
